7 Steps to Install Magento 2 in Windows OS with XAMPP

By Pooja Sharma / December 2, 2020

July 1, 2021
7 Steps to Install Magento 2 in Windows OS with XAMPP

In this section, we are going to install Magento 2 on the Windows platform using the XAMPP server. We need to know about the system requirement that is mentioned below:

System Requirement for Magento 2

  • Apache 2.2 or 2.4
  • Download XAMPP
  • PHP 7.0.13 -7.0.x, 7.1.x, 7.2.x
  • MySQL %.6,5.7
  • Browser - Google Chrome, Internet Explorer, or Firefox, etc.

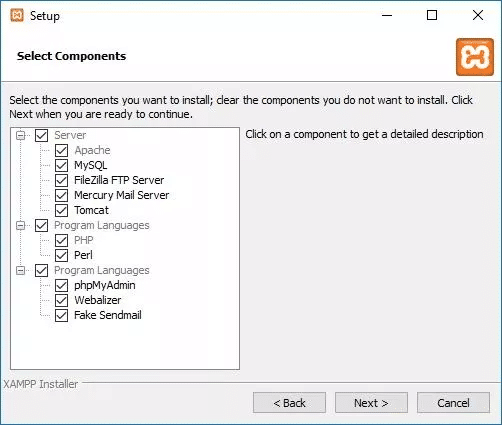

Step 1: Install XAMPP

  • To Download the 7.2.x version click here
  • Open and install XAMPP on your Windows

Install and save it in the drive you wish to keep the file

  • Open your XAMPP Control Panel

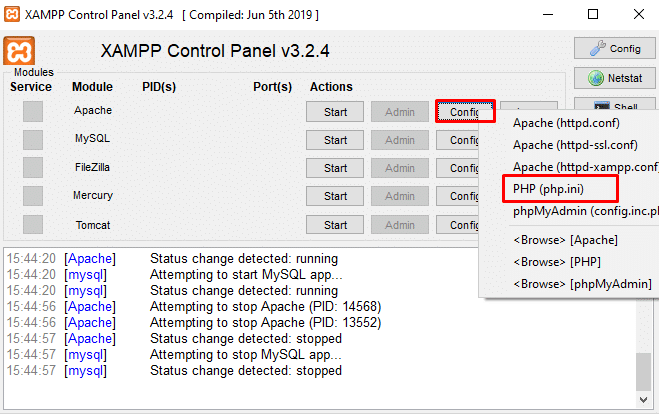

  • Click on Apache’s Config and go to PHP (php.ini)

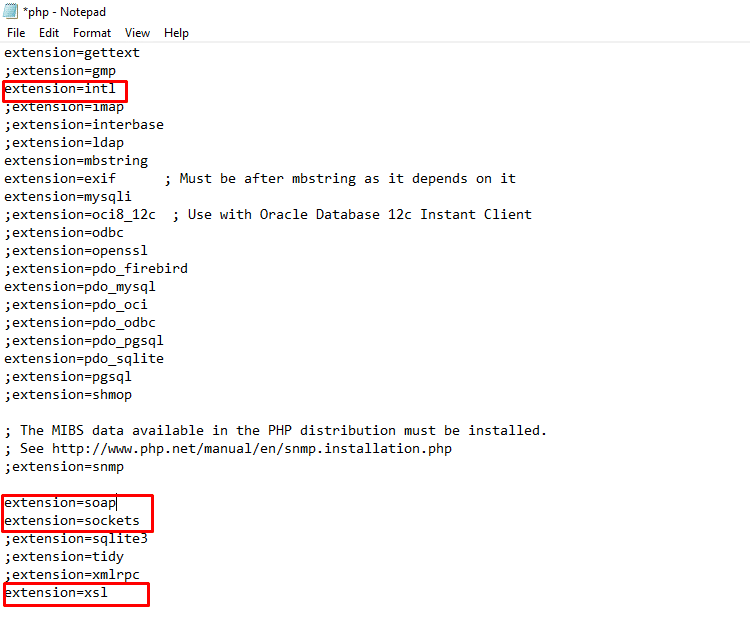

  • Search for extension=php_intl.dll, extension=soap, extension=sockets and extension=php_xsl.dll, and remove the semicolon “;” at the beginning from both.

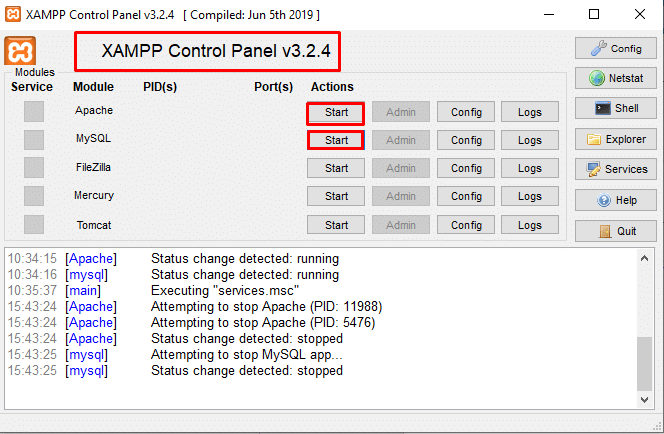

  • Start the Apache and MySQL services from the XAMPP control panel.

Also, read: How to add Simple & Configurable Products in Magento 2

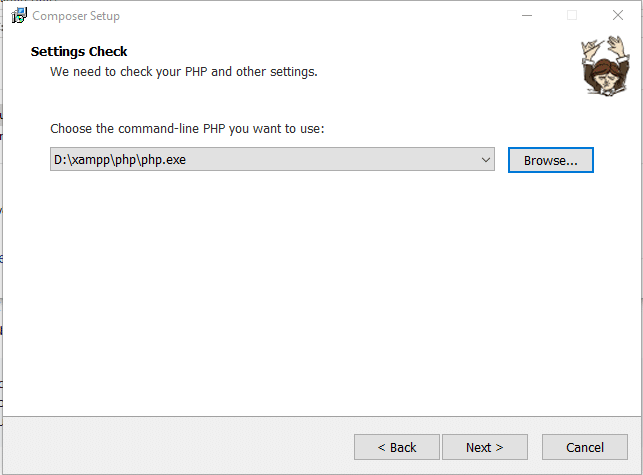

Step 2: Install Composer (Optional)

  • Browse XAMPP PHP exe file location to install the composer.

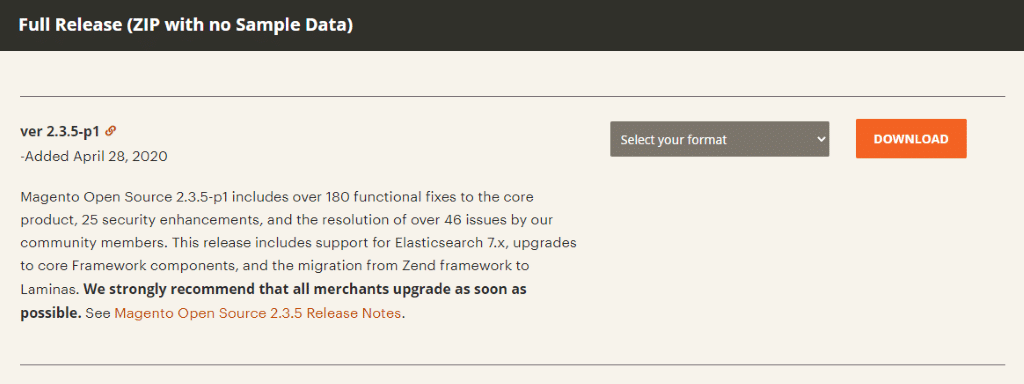

Step 3: Download Magento 2.3.5 setup from the Magento Official website.

  • Extract the Download Magento 2.3.5 archive and rename the extracted folder with the name you wish
  • Copy the renamed folder and past your XAMPP\htdocs location (ex: D:\xampp\htdocs).

Also, read: 4 Effective ways Small Businesses Can Optimize in Magento 2 Store

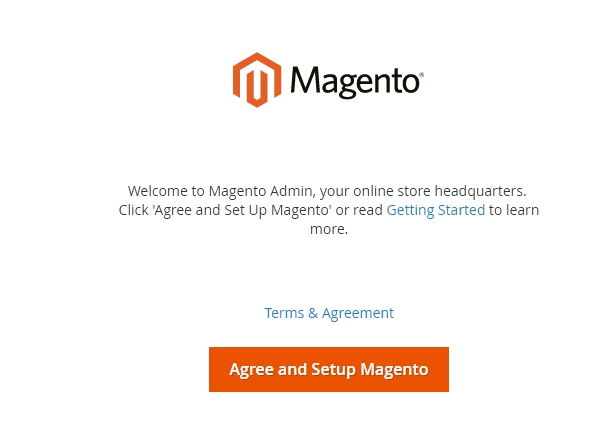

Step 4: Install Magento 2 (Run localhost open project - localhost/magento)

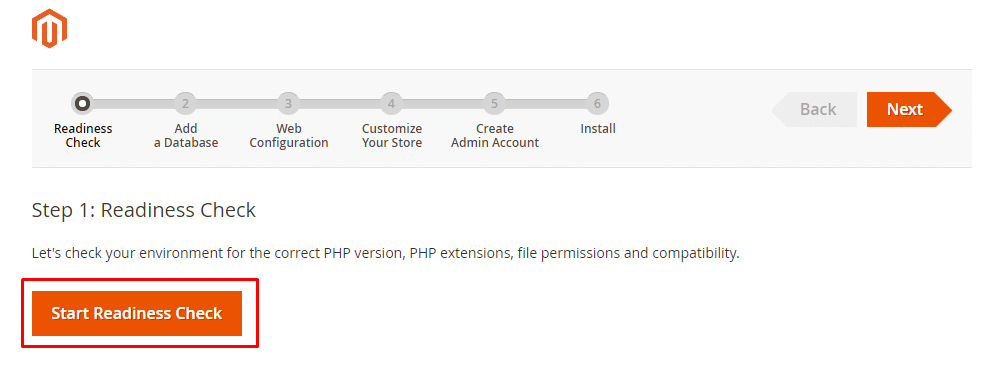

  • Start Installing (click Start Readiness Check).

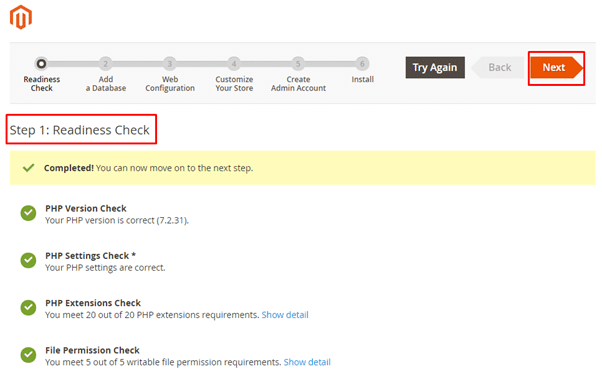

  • After click Readiness Check.

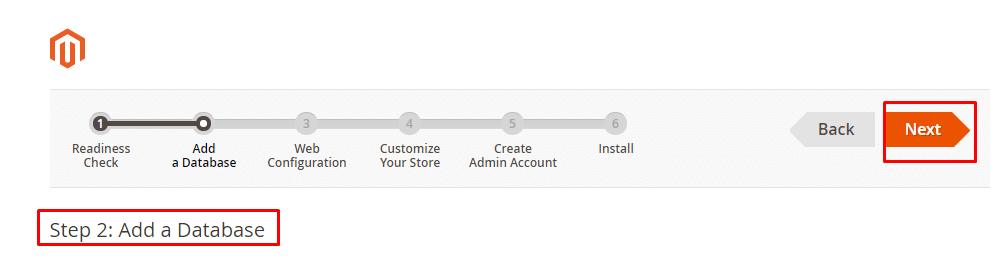

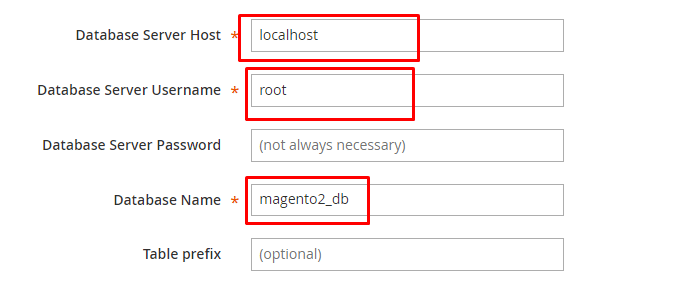

  • Click Next and “Add Database” step 2, enter the database details such as server host, username, password, name.

Add database name you created in localhost phpMyAdmin then click next.

  • In the Web Configuration step, enter the store and Magento admin address. Click Next

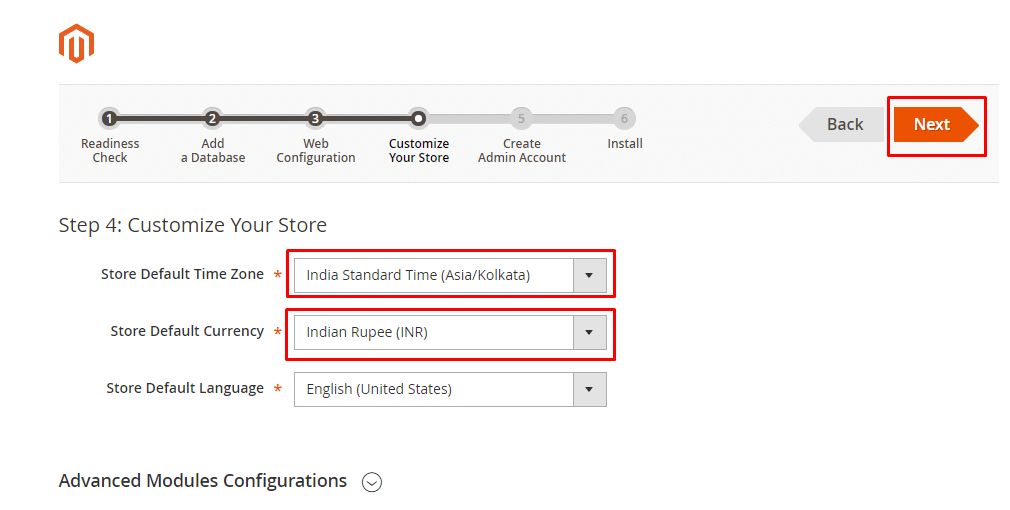

  • Customize Your Store step, enter the details such as time zone, currency, language, and click Next

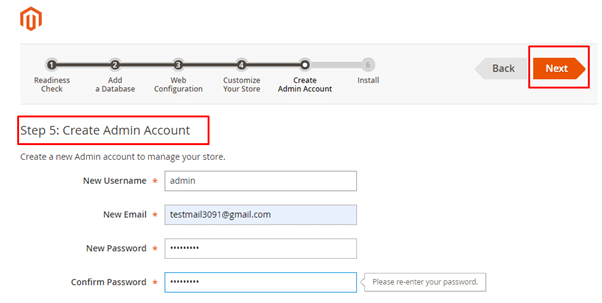

  • Create an Account step, configure the username, email, and password. Click Next
  • Finally, for the installation step, click Install Now

Also, read: Must use Magento 2 extension for additional functionality

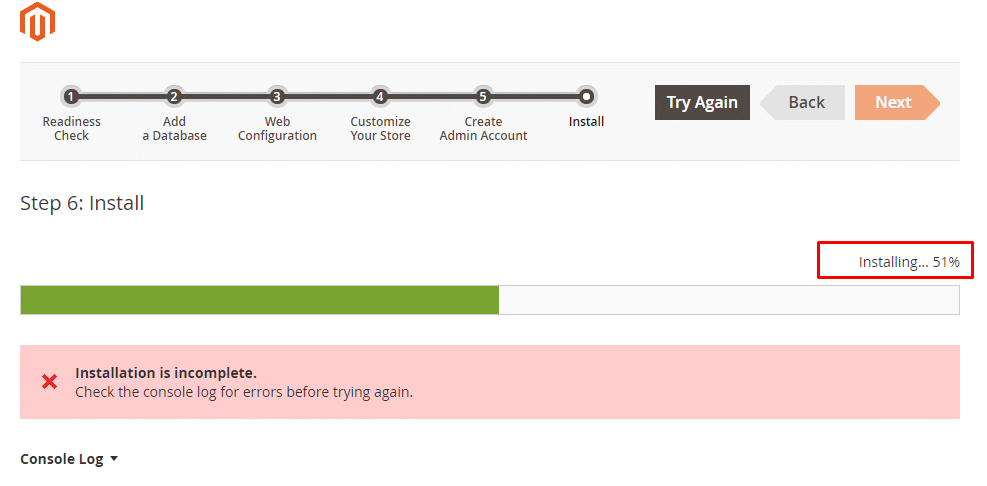

Step 5:  However, the process of installation is incomplete and gives an error

Sort the error:

You can replace this function validateURLScheme in File name: \vendor\magento\framework\Image\Adapter\Gd2.php

private function validateURLScheme(string $filename) : bool
    {
       $allowed_schemes = [‘ftp’, ‘ftps’, ‘http’, ‘https’];

       $url = parse_url($filename);

       if ($url && isset($url[‘scheme’]) && !in_array($url[‘scheme’], $allowed_schemes) && !file_exists($filename) && strlen($url[‘scheme’]) > 1) {

       return false;

    }
    return true;
}
  • And refresh the window and click install.

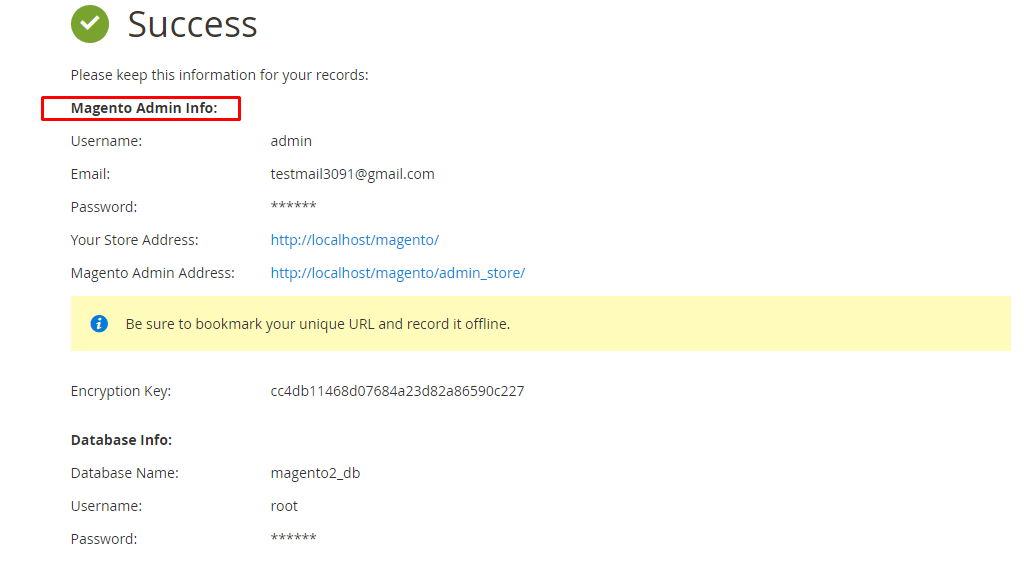

  • A success message will be displayed as below after the successful installation:

Step 6: Launch the admin panelin the browser

  1. Still if you don’t get any display on the admin dashboard:
  1. Change URL validator function on

/vendor/magento/framework/View/Element/Template/File/Validator.php:113

protected function isPathInDirectories($path, $directories)
    {
        $realPath = str_replace(‘\\’, ‘/’, $this->fileDriver->getRealPath($path));

        if (!is_array($directories)) {

            $directories = (array)$directories;
        }
        foreach ($directories as $directory) {

            if (0 === strpos($realPath, $directory)) {

                return true;
            }
        }
        return false;
    }

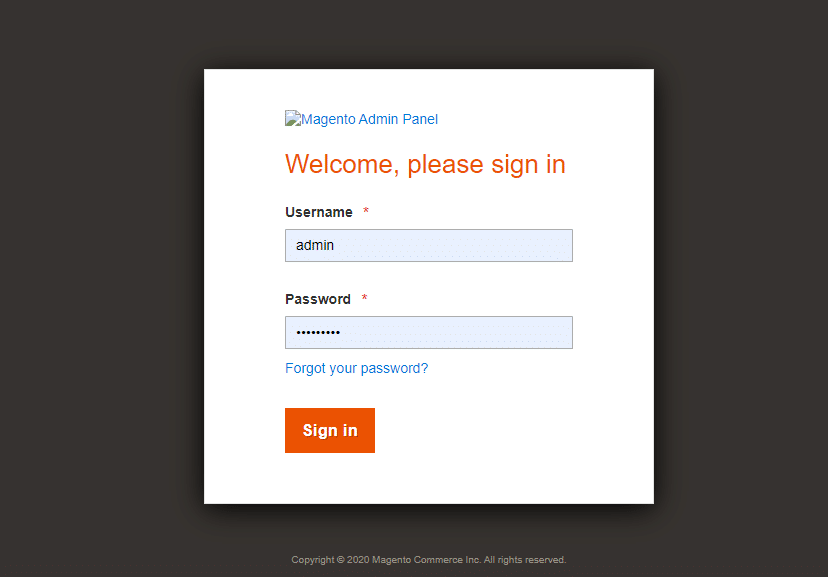

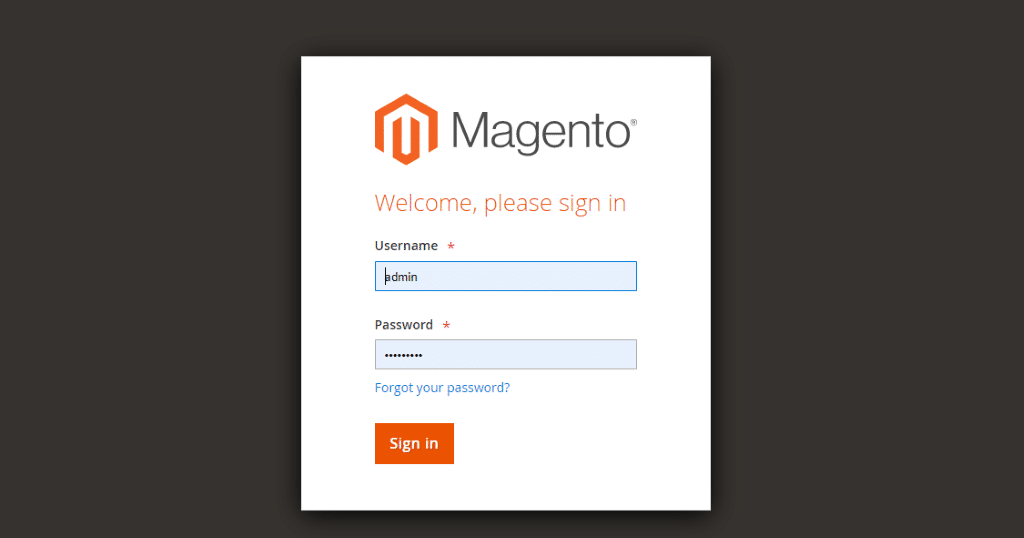

  1. Refresh page and a dialog box with Magento 2 login screen appear.

  • Open Command prompt for running Magento cache clear command.
  • Go to the Mangento project location directory (D:\xampp\htdocs\magento>)
  • php bin/magento setup:upgrade

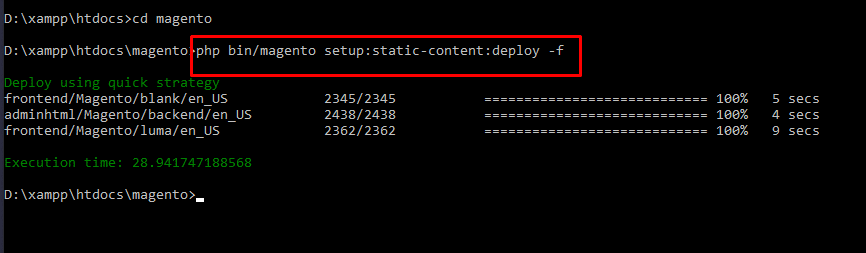

  • php bin/magento setup:static-content:deploy -f

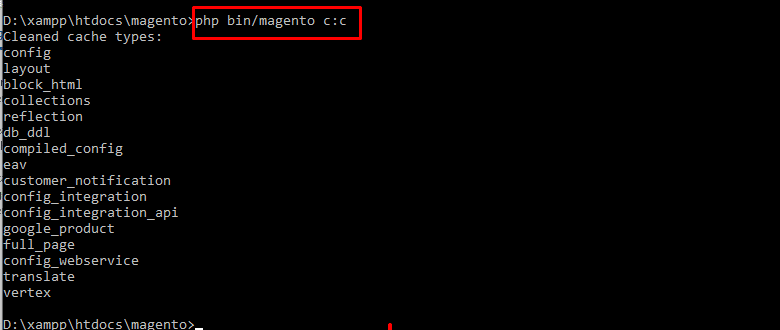

  • php bin/magento c:c

Finally, Magento 2 is successfully installed and is ready to operate on Windows localhost.
